Rad-97® with NomoLine® Capnography

Bedside Pulse CO-Oximeter®

Part of the Rad-97 family, Rad-97 with integated NomoLine capnography offers greater insight into a patient’s respiratory status, providing continuous SpO2, EtCO2, and respiration rate monitoring alongside a full suite of Masimo SET® and rainbow® technologies—all in a compact, portable, and highly configurable standalone device.

customizable display icon

Customizable & Configurable

upgradable technology icon

Upgradeable Technology

centralized connectivity icon

Integrated Connectivity

Built-in Capnography at the Bedside

Integrated capnography, acoustic respiration rate (RRa®), and respiration rate derived from the pleth (RRp®) provide clinicians with the flexibility to choose the most applicable respiration monitoring method for each patient—all from a single bedside device.

Featuring a patented design, NomoLine sampling lines and multi-use adapters deliver cost-effective, convenient sidestream capnography and gas measurements—allowing moisture to evaporate into the surrounding air, reducing the need for water traps and minimizing interruptions.

Features

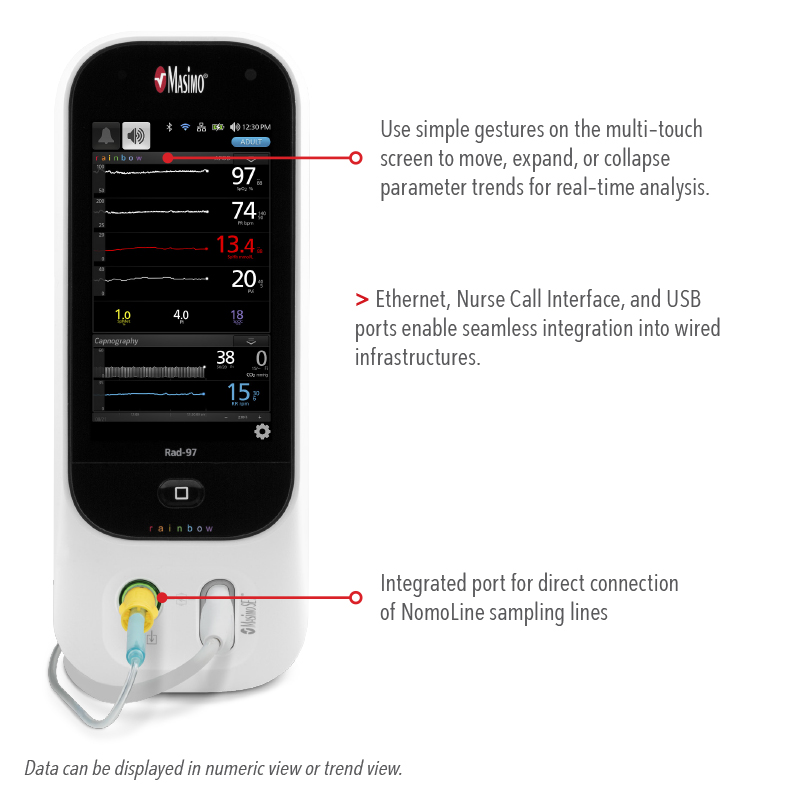

Diagram showing features of Rad-97 with NomoLine Capnography device.
Rad-97 monitor displaying real-time EtCO2 waveform for easy interpretation of capnography measurements.

The real-time EtCO2 waveform offers a clear, easy-to-interpret display of capnography measurements.

Rad-97 monitor with customizable display showing key patient data for quick assessment.

The customizable display allows for quick assessment of patient status, delivering pertinent data at a glance.

Rad-97 capnography module with color-illuminated gas inlet indicator showing device status.

The light-emitting gas inlet indicator uses color illumination to visually communicate the status of the capnography module.

Advanced Monitoring Technologies

Alongside built-in capnography, Rad-97 with NomoLine delivers an array of reliable, noninvasive, continuous measurements through Masimo SET® and upgradeable rainbow® technologies.

Masimo SET® Pulse Oximetry

SpO2

Oxygen Saturation*

PR

Pulse Rate*

Pi

Perfusion Index

PVi®

Pleth Variability Index

RRp®

Respiration Rate from the Pleth

* Masimo SET® Measure-through Motion technology includes SpO2 and PR.

rainbow® Pulse CO-Oximetry

SpHb®

Total Hemoglobin

ORi®

Oxygen Reserve Index

SpMet®

Methemoglobin

SpCO®

Carboxyhemoglobin

SpOC™

Oxygen Content

RRa®

Acoustic Respiration Rate

Capnography

EtCO2

End-tidal CO2

FiCO2

Fractional CO

RR

Respiration Rate

Explore Other Rad-97 Models

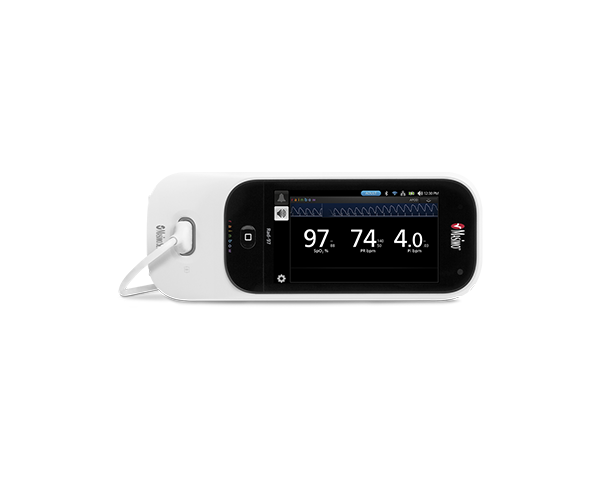

Docked Rad-97 pulse co-oximeter displaying Masimo rainbow SET parameters

Rad 97®

Bedside Pulse CO-Oximeter®

Masimo SET® pulse oximetry with upgradable rainbow® technology

Learn More

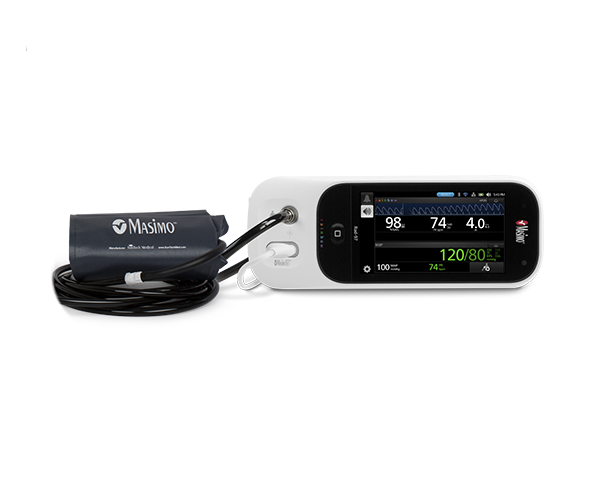

Rad-97 with NIBP connected to NIBP pressure cuff
